SOLVED: SwiftUI, A problem in drawing a puzzle piece by Path()

Forums > SwiftUI

I want to draw a puzzle piece, but I get trouble with path subtraction.

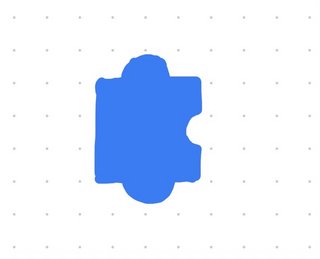

The following picture is what I want:

Howerver, the following picture is what I got:

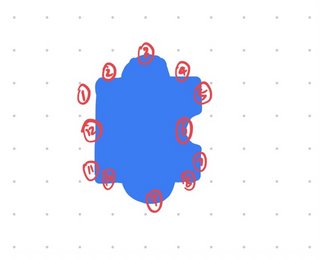

And the following picture show the sequence I drow:

And here is my code:

struct PuzzleNodeShape: Shape {
    var puzzleData: PuzzleData

    func path(in rect: CGRect) -> Path {
        var path = Path()

        let segment = min(rect.width, rect.height) * 0.2
        let radius = segment * 0.5

        let centerTop = CGPoint(x: rect.width * 0.5, y: segment)
        let centerRight = CGPoint(x: segment * 4, y: rect.height * 0.5)
        let centerBottom = CGPoint(x: rect.width * 0.5, y: segment * 4)
        let centerLeft = CGPoint(x: segment, y: rect.height * 0.5)

        path.move(to: CGPoint(x: segment, y: segment * 2))

        // Draw 1 and 2
        path.addLine(to: CGPoint(x: segment, y: segment))
        path.addLine(to: CGPoint(x: segment * 2, y: segment))

        // Draw 3 (Top)
        path.addArc(center: centerTop, radius: radius, startAngle:
              .degrees(0), endAngle: .degrees(180), clockwise: true)

        // Draw 4 and 5
        path.addLine(to: CGPoint(x: segment * 4, y: segment))
        path.addLine(to: CGPoint(x: segment * 4, y: segment * 2))

        // Draw 6 (Right)
        path.addArc(center: centerRight, radius: radius, startAngle:
              .degrees(90), endAngle: .degrees(270), clockwise: true)

        // Draw 7 and 8
        path.addLine(to: CGPoint(x: segment * 4, y: segment * 4))
        path.addLine(to: CGPoint(x: segment * 3, y: segment * 4))

        // Draw 9 (Bottom)
        path.addArc(center: centerBottom, radius: radius, startAngle:
              .degrees(180), endAngle: .degrees(360), clockwise: true)

        // Draw 10 and 11
        path.addLine(to: CGPoint(x: segment, y: segment * 4))
        path.addLine(to: CGPoint(x: segment, y: segment * 3))

        // Draw 12 (Left)
        path.addLine(to: CGPoint(x: segment, y: segment * 2))

        return path
    }
}
struct PuzzleLibraryView: View {
    var body: some View {
        PuzzleNodeShape()
    }
}

I think adding the correct difference between paths might solve it. But I have searched everywhere and couldn't make it work. If you could help me, I would be extremely grateful.

2

Hi, I had to change a few things for it to keep it's shape in diferent frames but this should work:

struct PuzzleNodeShape: Shape {
//    var puzzleData: PuzzleData

    func path(in rect: CGRect) -> Path {
        var path = Path()

        let segment = min(rect.width, rect.height) * 0.2
        let radius = segment * 0.5

        let centerTop = CGPoint(x: segment / 0.4, y: segment)
        let centerRight = CGPoint(x: segment * 4, y: segment / 0.4)
        let centerBottom = CGPoint(x: segment / 0.4, y: segment * 4)
//        let centerLeft = CGPoint(x: segment, y: segment / 0.4)

        path.move(to: CGPoint(x: segment, y: segment))

//      Draw 1 (Top)
        path.addArc(center: centerTop, radius: radius, startAngle:
              .degrees(180), endAngle: .degrees(0), clockwise: false)

//      Draw 2
        path.addLine(to: CGPoint(x: segment * 4, y: segment))

//      Draw 3 (Right)
        path.addArc(center: centerRight, radius: radius, startAngle:
              .degrees(-90), endAngle: .degrees(-270), clockwise: true)

//      Draw 4
        path.addLine(to: CGPoint(x: segment * 4, y: segment * 4))

//      Draw 5 (Bottom)
        path.addArc(center: centerBottom, radius: radius, startAngle:
              .degrees(0), endAngle: .degrees(180), clockwise: false)

//      Draw 6
        path.addLine(to: CGPoint(x: segment, y: segment * 4))

//      Draw 7 (Left)
        path.closeSubpath()

        return path
    }
}

3

Think you every much !!! You solved it perfectly !!!
